Mô tả chi tiết
|

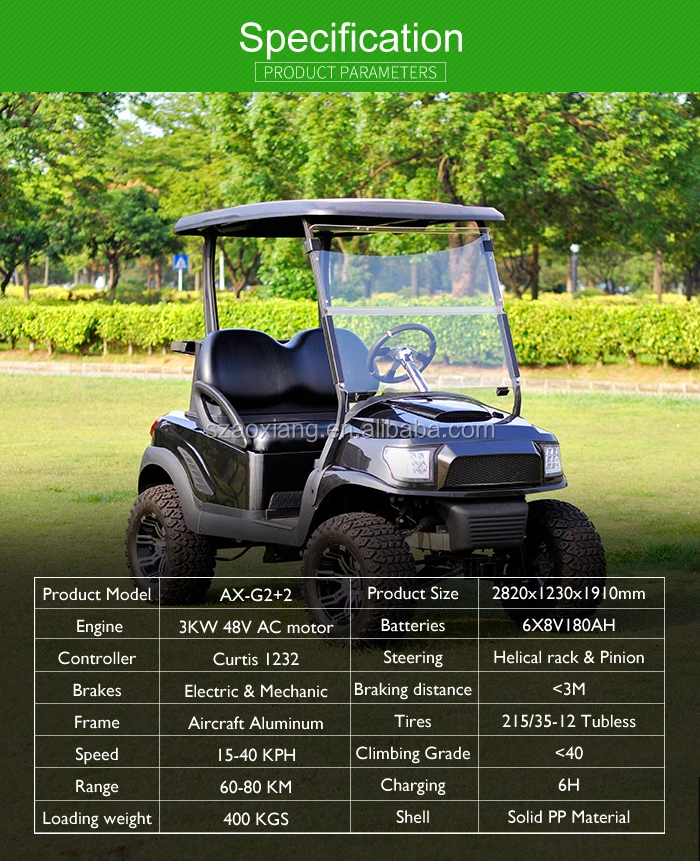

| Specifications | ||||||||||
| Product size | 2820x1230x1910mm | |||||||||
| Seating capacity | 4 Persons | |||||||||
| Battery | 8V180AH maintenance free | |||||||||
| Motor | 3KW 48V high efficiency AC motor | |||||||||
| Controller | Curtis / Enpower | |||||||||
| Brakes | Electric & Mechanic brakes | |||||||||
| Maximum speed | 40KMH | |||||||||
| Braking distance | <3M | |||||||||
| Minimum turning diameter | <8M | |||||||||
| Maximum grade | <40 | |||||||||
| Loading weight | 400kgs | |||||||||
| Charge time | 6H | |||||||||
| Running period | 60-80KM | |||||||||
| Wheel base | 1700mm | |||||||||
| Frame | Aircraft Aluminum | |||||||||
| Rear Suspension | Track Bar and Shock Absorber Spring | |||||||||
| Front Suspension | Independent A-arms with Hydraulic shocks | |||||||||
| Light | Automotive LED lights Daytime Running Light | |||||||||
AX-G2 Series, the designer off-road golf cart with electric power of 40KPH high speed, Lifed independent suspension system, aluminum wheel, all terrain tire and LED light system. |

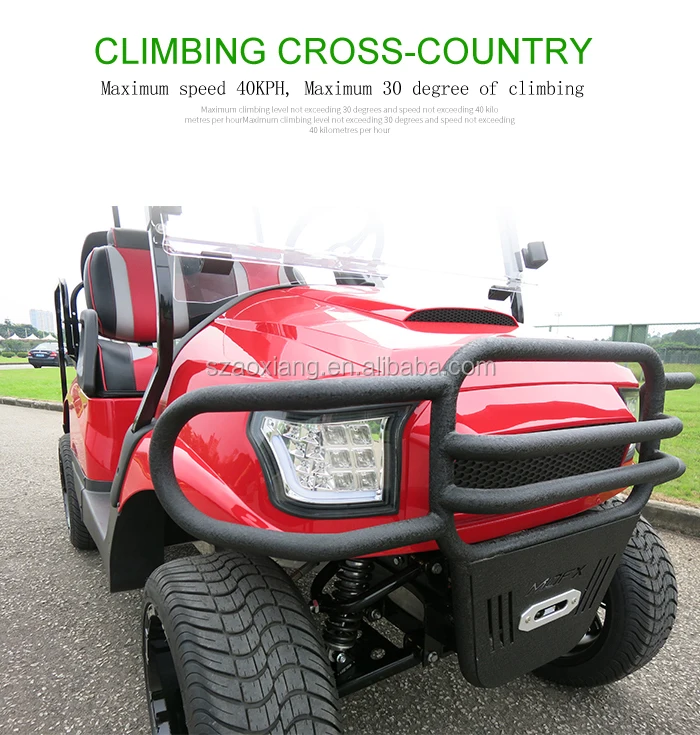

*Maximum 40 grade abilty
* Maximum 40KM/H Speed
* Maximum 800 pounds translate ability
* Maximum 80 kilometerroad haul range
* Powerful 3KW 48Volt AC high efficiencymotor
* Powerful Electromagnetic / Drumbrakes
* Excellent independent suspension system on front wheel
* Excellent steering response and stability chassis
* Curtis Programmable controller from USA
*CE Certificated for the Entire Vehicle

| Standard Model | ||||||||||
| Onboard Charger, Enpower, 17A | √ | |||||||||
| Battery 8V 180AH maintainnece free | √ | |||||||||
| Ling Yue Transaxle 1:12.315 | √ | |||||||||
| 12' Aluminum Wheels, 215/35-12 Tires | √ | |||||||||
| LED Lighting System, Front and Rear | √ | |||||||||
| Side Mirror , Right and Left | √ | |||||||||
| Rear Drum Brake + Electric Brake | √ | |||||||||
| Dashboard, Fwd/Rev, Bat Indicator, USB charge station, Turn signals, Seat Belts | √ | |||||||||
| Foldable windshield | √ | |||||||||

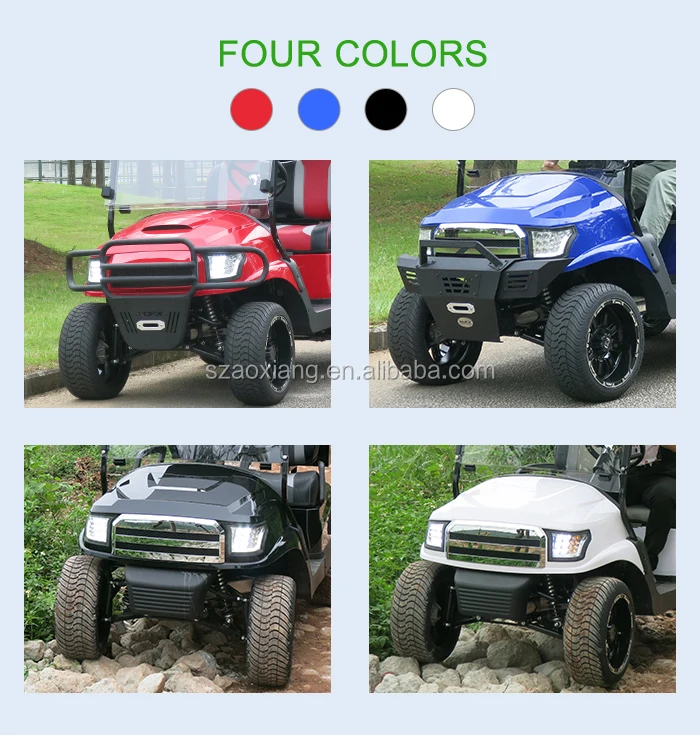

| 3 Colors High back seat | √ | |||||||||
| 54' Canopy | √ | |||||||||
| Rear Golf Bag Holder | √ | |||||||||

Features:
1. Good after-sale service for electric golf carts as most parts are manufactured by ourselves;
2. CE certificate for electric golf carts and for main parts also pass CE;
3. Import main parts: Curtis Controller(From USA);
4. Brake system: Electromagnetic parking brakes ;
5. Sport steering system, easy to make forward and backward;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7.Can be easily to be modified to any outdoor events;

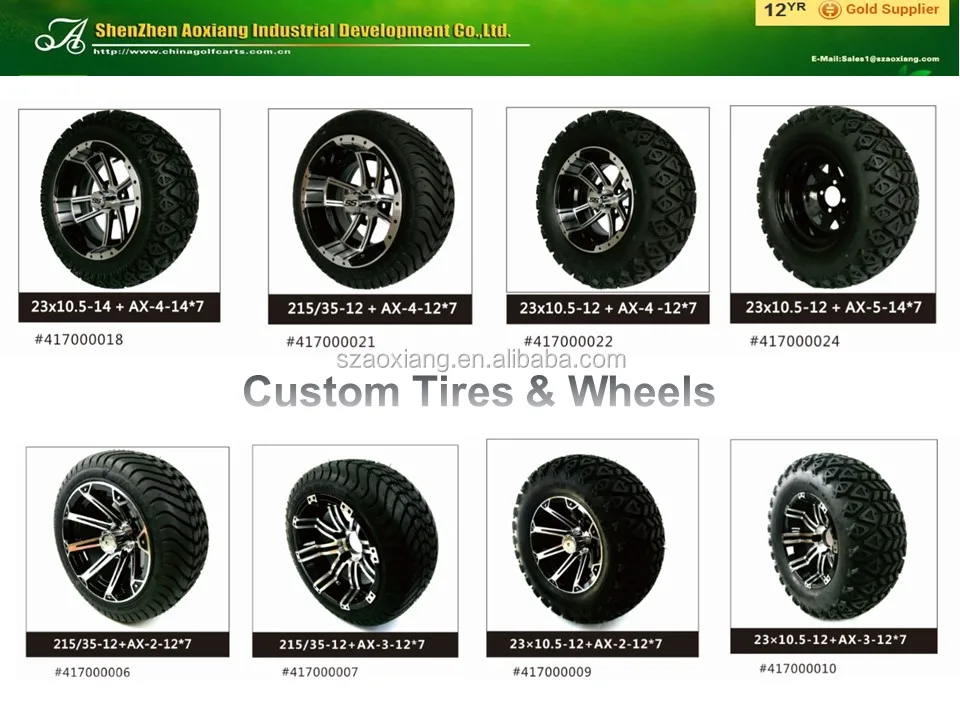

8.Option parts: Custom Tires & Wheels, Custom Seat Colors, Custom Grill;



Since 1998
Shenzhen Aoxiang Industrial Development Co.,Ltd is the Leading golf carts and accessories manufacturer in Shenzhen, China; We own over 25,000 square meters industrial zone, 180 skilled workers and 20 engineers teamto providethe top OEM service you!
For any questions, please feel free to contact us as below:
Astral Yuan
Email: Sales6#szaoxiang.com
Site: http://www.chinagolfcarts.com
http://szaoxiang.en.alibaba.com
